0
Battery pack (EY9136)
1. Press the battery pack release
buttons © on both sides and pult
the pack away from the tool.
2. Charge the battery pack using the
battery charger.
3. After the charging has been com
pleted, remove the battery pack
from the charger and connect it to
the tool. Disconnect the charger
from the A.C. outlet when not in use.
Battery Pack Life
The rechargeable batteries have a
limited life. If the operation time
becomes extremely short after
recharging, replace the battery with a
new one. If the tool is not frequently
used, charge the battery pack at
least once every six months to main
tain battery performance.
Note: Use under extremely hot or
cold conditions wiil reduce
operation capacity per charge.
ATTENTION:
The nickel cadmium battery you have
purchased is recyclable. At the end
of it’s useful life, under various state
and local laws, it is illegal to dispose
of this battery into your municipal
waste stream. Please call 1 -800-8-
BATTERY for information on how to
recycle this battery.
EY0212

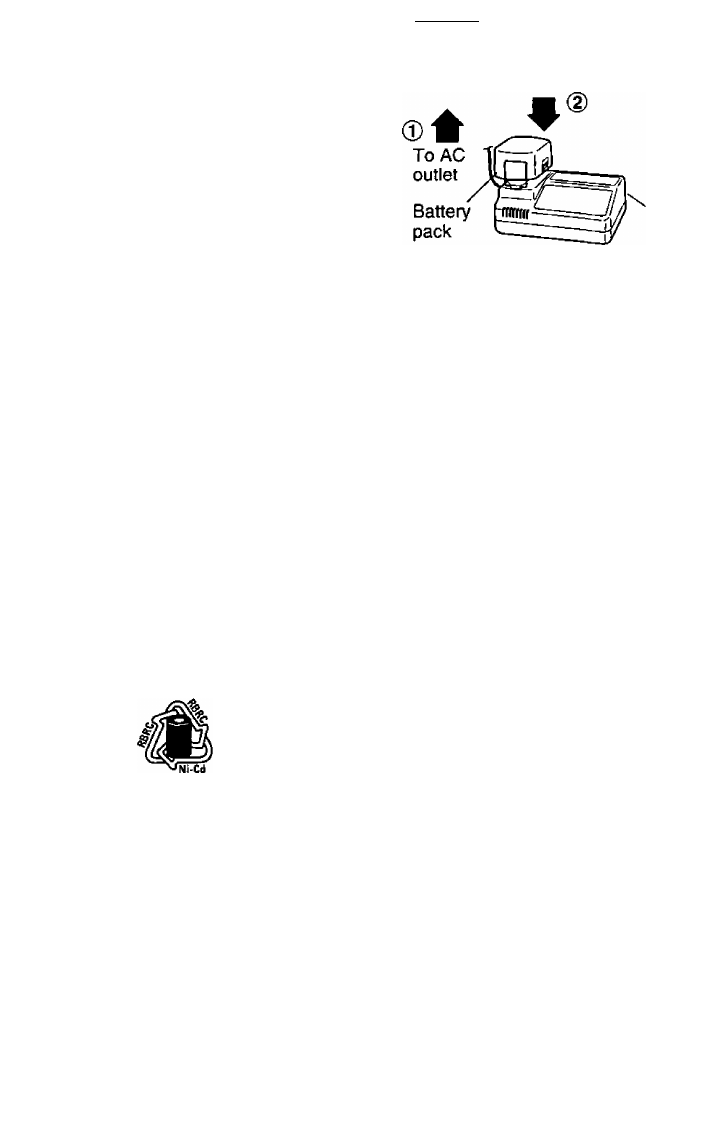

1. Plug the charger into an AC outlet.
2. Open the cap and insert the bat
tery pack firmly into the charger.
0 Battery pack release button
Q) Battery charger (EY0212)
Note; Charge a new battery pack, or
a battery pack that has not
been used for a prolonged time,
for about 24 hours to bring the
battery up to full charge.
Battery
charger
3. During charging, the charging
lamp will be lit.
When charging is completed, an
internal electronic switch will auto
matically be triggered to prevent
overcharging.
• Charging will not start if the bat
tery pack is warm (for example,
immediately after heavy-duty
operation). The orange standby
lamp will be lit until the battery
cools down. Charging wiil then
begin automatically.
4. When charging is completed, the
charging lamp will start flashing
rapidly.
5. If the charger is too hot by charg
ing more than two battery packs
consecutively, charging a battery
pack that has not been used for a
long time or the ambient tempera
ture is rather tow, the charging
lamp starts flashing slowly. It indi
cates protective charging and it
takes more time than standard
charging time until the battery pack
is fully charged.
• If a fully charged battery pack is
inserted into the charger again,
the charging lamp may light up
and then flash slowly. After sever
al minutes, the charging lamp
may flash quickly to indicate the
charging is completed.
6. If the charging lamp does not light
immediately after the charger is
plugged in, or if after the standard
charging time the lamp does not go
off, consult an authorized dealer.
-8-
