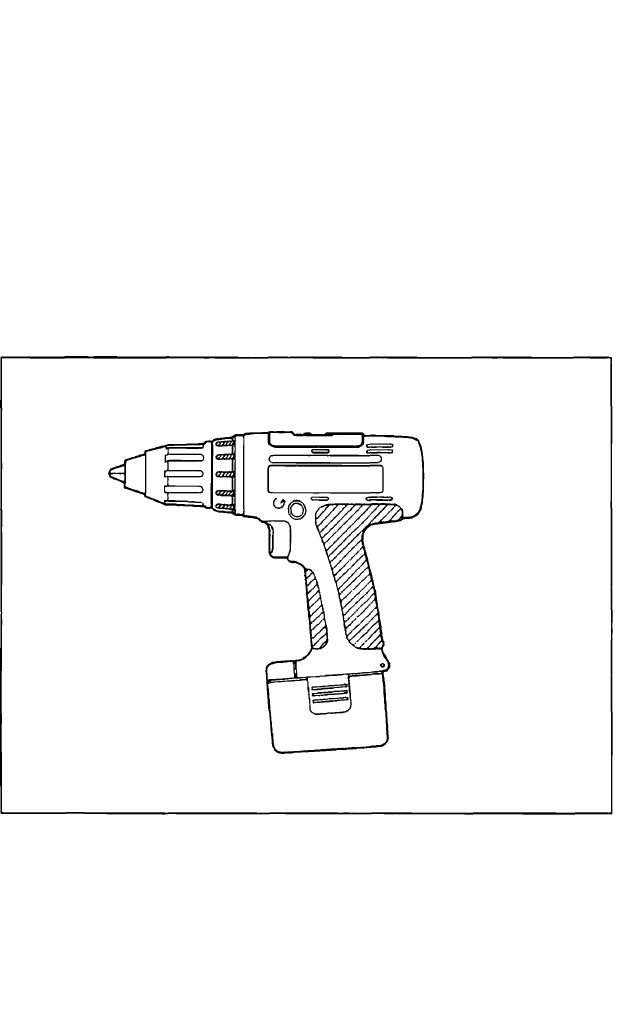

InstructionManualVariable Speed Drill & DriverModel: EY6406/EY6407/EY6431PanasonicA IMPORTANTThis manual contains safety information. Read manual

ACCESSORIESUse only bits suitable for size of drill’s chuck.MAXIMUM RECOMMENDED CAPACITIESModelEY6406 EY6407 EY6431Screwdrivir>gMachine screwM5M5M6

30-DAY QUALITY ; SATISFACTION GUARANTEE:If you are dissatisfied with any Panasonic Cordiess Power Tool for any reason, simply return it to the place o

GENERAL SAFETY RULES-FOR ALL BATTERY OPERATED TOOLSWARNING!READ AND UNERSTAND Aa INSTRUCTIONS.* Failure to follow all instructions listed bel

13) Do not force tool. Use the correct tool for your application.The correct tool will do the job better and safer at the rate for which it is

FOR BATTERY CHARGER & BAHERY PACK> SAVE THESE INSTRUCTIONS ™.manual contains important safety and operating instructions for battery charg

18) Avoid dangerous en\^ronment. Do not use charger in damp or wet locations.19) The charger is designed to operate on standard household ele

FUNCTIONAL DESCRIPTION^EY6406 is referred for illustration.0Keyless drill chuckClutch handle©Reversing leverVariable speed control trigger©Speed selec

ASSEMBLYAttaching or removing bitNote: When attaching or removing a bit, be sure to set the reversing lever to its center position (switch lock)

Clutch Torque SettingAdjust the torque to one of the 18 possible settings or “ g" position to the job. CAUTION: Test the setting before actual o

• Charging will not start if the battery pack IS warm (for example, immediately after heavy-duty o^ratlon). The orange standby lamp will be lit until
